01
The workflow you know
Command line with clickable keywords, AutoComplete and aliases; object snaps, polar tracking, ortho, direct distance entry, grips, window and crossing selection — decades of drafting habit, respected.
01 / CADCraft CAD & drafting · Early development
01 CADCraft
The drafting workflow you already know by heart.
Type L, click two points, type @5<45, press Enter. The command line, object snaps, layers, dimensions, hatches and blocks — a free, open-source AutoCAD alternative written entirely in Rust and compiled to WebAssembly. It opens and writes DXF, opens and saves DWG, plots to PDF, needs no account, never uploads your drawings, and works offline. Open the CADCraft editor — free and open source.
Runs in your browser — free and open source
02 / Highlights
What’s inside.
02
Draw and modify everything
LINE, PLINE, CIRCLE, ARC, RECTANG, POLYGON, ELLIPSE, SPLINE, TEXT, MTEXT — then MOVE, COPY, ROTATE, MIRROR, OFFSET, TRIM, EXTEND, FILLET, CHAMFER and arrays, non-destructively where it matters.
03
Annotate like a drafter
All DIM* commands with full DIMSTYLE variables and every arrowhead, associative dimensions that follow geometry, MLEADER, TABLE, TrueType fonts and MTEXT formatting codes.
04
Real drawing files
DXF read and written natively (ASCII and binary, R12–2018); DWG R13–2018 opens and saves through the open acadrust library; PDF plotting plus SVG and PNG export.
05
Agent-native
Every menu item, tool and prompt is a command: agents can type at the command line exactly like a person, call commands with JSON, inspect the drawing and render it — over MCP or the JSON control channel.
06
Parametric when you want it
Geometric and dimensional constraints with expressions and conflict detection; constraints re-solve after every edit, so a bracket stays a bracket when you drag it.
03 / Made for
Real drafting, in a browser tab.
01

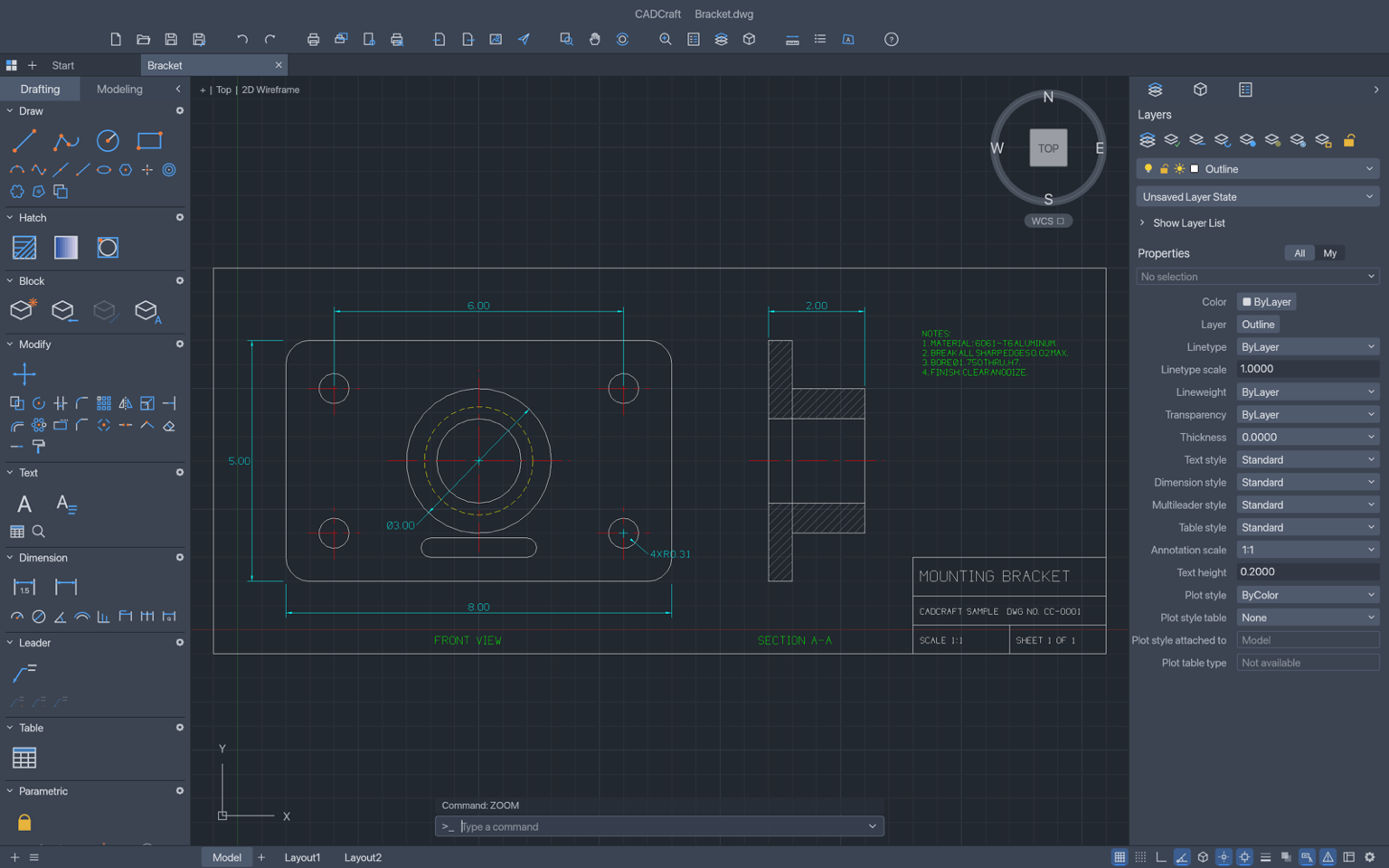

Document a part
Two views with centre lines, hidden lines, an ANSI31 section hatch, dimensions and a title block — plotted to PDF straight from the tab.
02

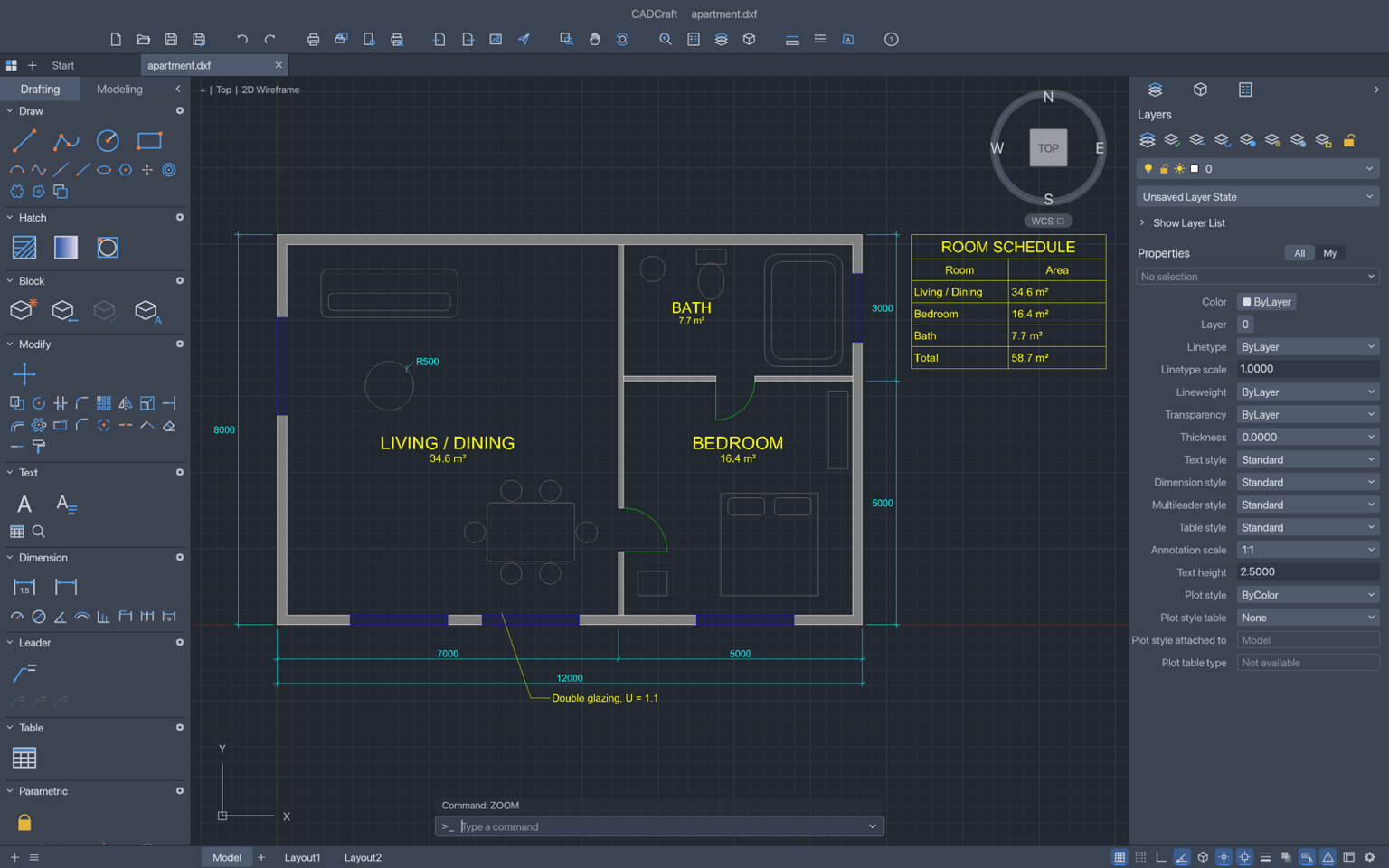

Draw a floor plan
Walls on their own layers, hatched rooms, associative dimensions, a paper-space layout with a scaled viewport — and the DWG the site surveyor sent opens as-is.
03
Fix a client's DXF
Open the file they emailed, correct a dimension, re-hatch a section, plot a fresh PDF — no install, no licence server, nothing uploaded.
04 / How it works
Draft a drawing in five steps.
- 01
Open a tab
CADCraft boots in the browser — no download, no account. Start an empty drawing or open a DXF/DWG straight from your device.
- 02
Set up layers
Layers for walls, dimensions and hatches with colour, linetype and lineweight — the Layer Properties Manager works the way it always has.
- 03
Draw with the command line
Type the command, answer the prompts, use object snaps and polar tracking; direct distance entry and @-coordinates for exact geometry.
- 04
Annotate
Associative dimensions with your DIMSTYLE, hatches with islands, text and blocks with attributes — all following the geometry as it changes.
- 05

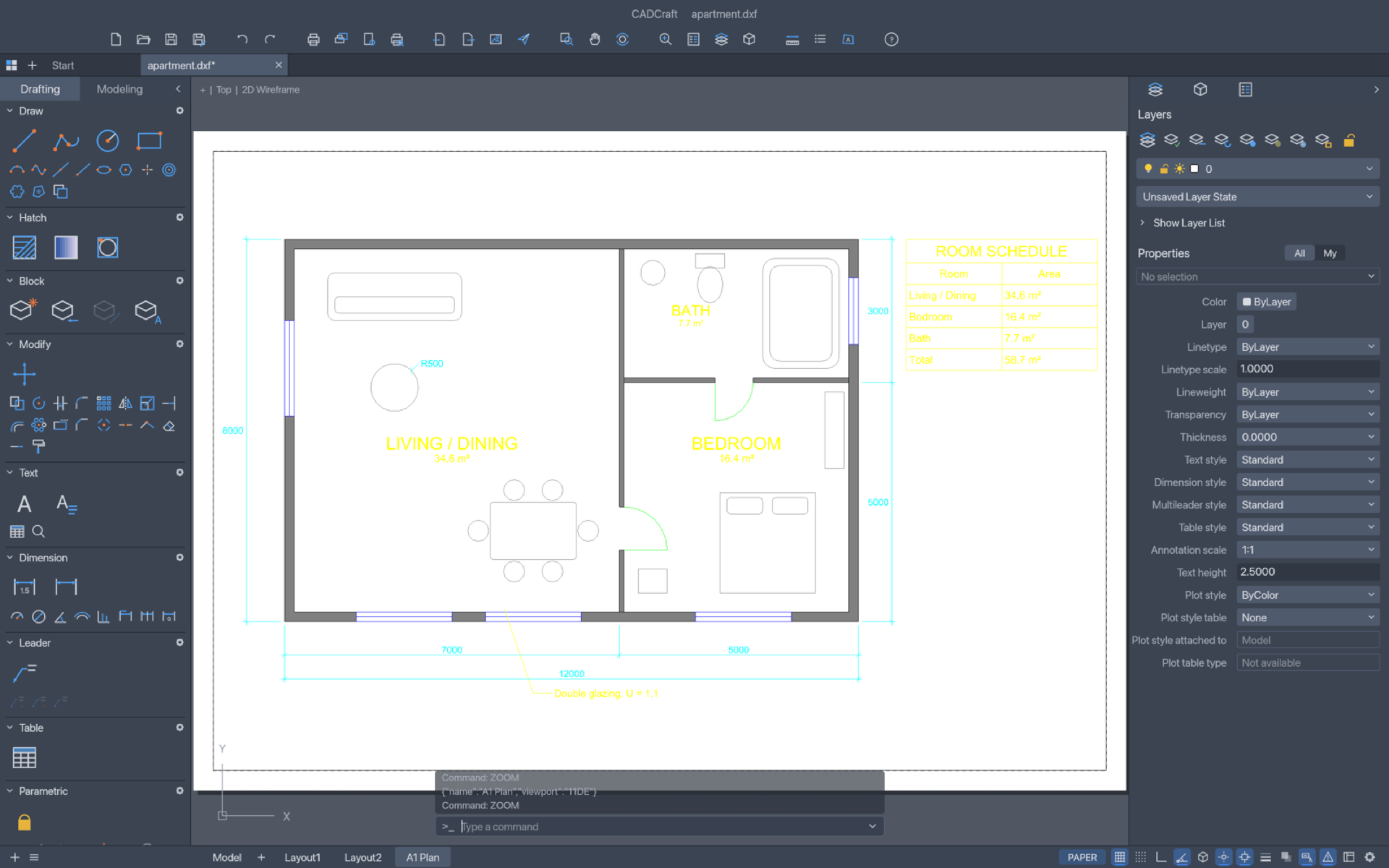

Plot and hand off
Lay out a sheet with a scaled viewport, PLOT to PDF, or export SVG and PNG — all written by the engine’s own Rust code.
05 / Files
Drawings that open where they came from.
| Format | Support | Notes |
|---|---|---|
| DXF | read + write | ASCII and binary, R12–2018 in; R2000 out — dimension styles, associativity, tables and constraints carried |
| DWG | read + write | R13–2018 through the open-source acadrust library |
| plot | paper-space PLOT and EXPORTPDF from layouts and page setups | |
| SVG, PNG | export | vector and raster hand-offs |
| TrueType fonts | read | .ttf, .otf and .ttc collections, plus our single-stroke drafting font |
06 / Precision
Snap, track, constrain.
Object snaps — endpoint, midpoint, centre, node, quadrant, intersection, insertion, perpendicular, tangent, nearest, with deferred tangent and perpendicular for the first point of a line — polar tracking, ortho and grid snap for entry, and parametric geometric and dimensional constraints with expressions for the geometry that must not drift.
07 / Screenshots
Captured in CADCraft.
08 / Get CADCraft
Nothing to install.
Open a tab
The whole drafting workstation, compiled to WebAssembly — no download, no installer, no account. It boots like a web page and drafts like a native app.
Launch the editorWorks offline
Install it as an app from your browser and CADCraft keeps working without a connection — the shell, the engine and your last drawing are cached on your device.
Your drawings stay yours
DXF and DWG open from and save back to your device. Nothing is uploaded — there is no server to upload to.
09 / FAQ
Questions, answered.
Is CADCraft really free?
Yes. CADCraft is free and open source under MIT OR Apache-2.0 — no account, no subscription. The browser build needs no install.
Can it open DXF and DWG files?
Yes. DXF is read and written natively (ASCII and binary, R12 through 2018), and DWG files R13–2018 open and save through the open-source acadrust library.
Does it have the AutoCAD command line?
Yes — prompts with clickable keywords, AutoComplete, aliases, @dx,dy and @d<a coordinate entry, direct distance entry, Enter/space/right-click to repeat, transparent commands and scripts.
Can I dimension and hatch drawings?
All DIM* commands with full DIMSTYLE variables, overrides and every arrowhead, associative dimensions that follow geometry; pick-point hatches with islands, patterns, solids and gradients.
Can AI agents drive CADCraft?
Yes — every menu item, tool and prompt is a command. Agents can type at the command line exactly like a person, call any command with JSON, inspect the drawing to verify their work and render it, over MCP or the JSON control channel.
Can I plot to PDF?
Yes — paper-space layouts, viewports with scale and lock, page setups, and PLOT/EXPORTPDF straight from the browser; SVG and PNG export too.
Does it support layers and linetypes?
A full Layers palette and Layer Properties Manager — on/off, freeze, lock, plot, colour, linetype and lineweight — plus layer tools like isolate, match and previous, and a Properties palette with per-object editing.
Does the CAD editor work offline?
Yes. Install CADCraft as an app from your browser and the shell, the engine and your last drawing are cached on your device; drafting continues without a connection.
Is my drawing uploaded anywhere?
No. The editor runs in the tab; drawings open from and save back to your device. There is no server to upload to.
Is it 2D or 3D?
CADCraft today is a 2D drafting workstation — model space, paper-space layouts and viewports — with parametric constraints; 3D modelling is on the roadmap.
Which languages does the interface speak?
English, Ukrainian, Brazilian Portuguese, German, Spanish, Czech, Russian, French and Simplified Chinese, with live switching between them.
10 / The family
The Craft apps.
CADCraft is one of a family of open crafting tools.
Type L. Press Enter.
A full drafting workstation — in a tab, for free.
Start drafting
